Inzerát ID: 13158457

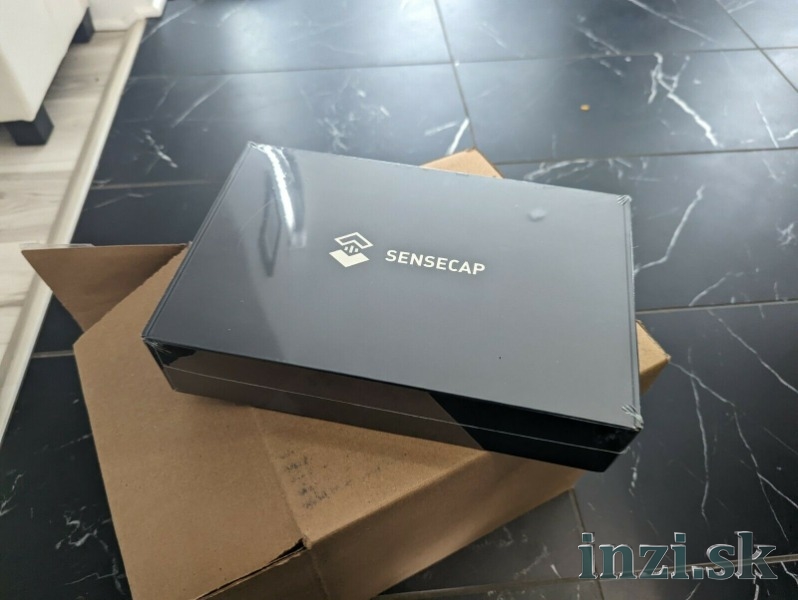

SenseCAP M1 Helium HNT LoRaWAN Indoor Gateway US915 Miner hotspot Specifications Processor Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz) RAM 2GB / 4GB / 8GB Storage 64GB MicroSD Card Frequency EU868 Version: 863MHz ~ 870MHz US915 Version: 902MHz ~ 928MHz Sensitivity -125dBm @125KHz/SF7 -139dBm @125KHz/SF12 TX Power Up to 26 dBm Antenna Gain US915: 2.6 dBi EU868: 2.8 dBi Antenna Impedance 50 Ohm Antenna Radiation Pattern Omni-Directional Wi-Fi 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless Bluetooth Bluetooth 5.0, BLE LoRaWAN Supports Class A, C Input Voltage DC 5V - 3A Interfaces USB Type-C (Power Supply) * 1 Ethernet RJ45 * 1 RP-SMA Female Antenna Connector* 1 Operating Temperature 0°C to 50°C Relative Humidity 0% - 90% (non-condensing) Heat Dissipation Aluminum enclosure, a heatsink, and a cooling fan IP Grade IP20 Contact us now for more details.Contact now fo
